yolov5_ZWgra/tutorial.ipynb

This is the official YOLOv5 🚀 notebook authored by Ultralytics, and is freely available for redistribution under the GPL-3.0 license. For more information please visit https://github.com/ultralytics/yolov5 and https://ultralytics.com. Thank you!

Setup

Clone repo, install dependencies and check PyTorch and GPU.

In [ ]:

!git clone https://github.com/ultralytics/yolov5  # clone repo
%cd yolov5
%pip install -qr requirements.txt  # install dependencies

import torch
from IPython.display import Image, clear_output  # to display images

clear_output()
print(f"Setup complete. Using torch {torch.__version__} ({torch.cuda.get_device_properties(0).name if torch.cuda.is_available() else 'CPU'})")

Setup complete. Using torch 1.8.1+cu101 (Tesla V100-SXM2-16GB)

1. Inference

detect.py runs YOLOv5 inference on a variety of sources, downloading models automatically from the latest YOLOv5 release, and saving results to runs/detect. Example inference sources are:

In [ ]:

!python detect.py --weights yolov5s.pt --img 640 --conf 0.25 --source data/images/
Image(filename='runs/detect/exp/zidane.jpg', width=600)

Namespace(agnostic_nms=False, augment=False, classes=None, conf_thres=0.25, device='', exist_ok=False, img_size=640, iou_thres=0.45, name='exp', project='runs/detect', save_conf=False, save_txt=False, source='data/images/', update=False, view_img=False, weights=['yolov5s.pt'])
YOLOv5 🚀 v5.0-1-g0f395b3 torch 1.8.1+cu101 CUDA:0 (Tesla V100-SXM2-16GB, 16160.5MB)

Fusing layers...
Model Summary: 224 layers, 7266973 parameters, 0 gradients, 17.0 GFLOPs
image 1/2 /content/yolov5/data/images/bus.jpg: 640x480 4 persons, 1 bus, Done. (0.008s)
image 2/2 /content/yolov5/data/images/zidane.jpg: 384x640 2 persons, 2 ties, Done. (0.008s)
Results saved to runs/detect/exp
Done. (0.087)

2. Validate

Validate a model's accuracy on COCO val or test-dev datasets. Models are downloaded automatically from the latest YOLOv5 release. To show results by class use the --verbose flag. Note that pycocotools metrics may be ~1% better than the equivalent repo metrics, as is visible below, due to slight differences in mAP computation.

COCO val2017

Download COCO val 2017 dataset (1GB - 5000 images), and test model accuracy.

In [ ]:

# Download COCO val2017
torch.hub.download_url_to_file('https://github.com/ultralytics/yolov5/releases/download/v1.0/coco2017val.zip', 'tmp.zip')
!unzip -q tmp.zip -d ../datasets && rm tmp.zip

HBox(children=(FloatProgress(value=0.0, max=819257867.0), HTML(value='')))

In [ ]:

# Run YOLOv5x on COCO val2017
!python val.py --weights yolov5x.pt --data coco.yaml --img 640 --iou 0.65 --half

Namespace(augment=False, batch_size=32, conf_thres=0.001, data='./data/coco.yaml', device='', exist_ok=False, half=True, img_size=640, iou_thres=0.65, name='exp', project='runs/val', save_conf=False, save_hybrid=False, save_json=True, save_txt=False, single_cls=False, task='val', verbose=False, weights=['yolov5x.pt'])
YOLOv5 🚀 v5.0-157-gc6b51f4 torch 1.8.1+cu101 CUDA:0 (Tesla V100-SXM2-16GB, 16160.5MB)

Downloading https://github.com/ultralytics/yolov5/releases/download/v5.0/yolov5x.pt to yolov5x.pt...
100% 168M/168M [00:01<00:00, 156MB/s]

Fusing layers...
Model Summary: 476 layers, 87730285 parameters, 0 gradients
val: Scanning '../coco/val2017' images and labels...4952 found, 48 missing, 0 empty, 0 corrupted: 100% 5000/5000 [00:01<00:00, 3008.87it/s]
val: New cache created: ../coco/val2017.cache
               Class     Images     Labels          P          R     mAP@.5 mAP@.5:.95: 100% 157/157 [01:17<00:00,  2.02it/s]
                 all       5000      36335      0.746      0.626       0.68       0.49
Speed: 5.3/1.5/6.8 ms inference/NMS/total per 640x640 image at batch-size 32

Evaluating pycocotools mAP... saving runs/val/exp/yolov5x_predictions.json...
loading annotations into memory...
Done (t=0.44s)
creating index...
index created!
Loading and preparing results...
DONE (t=4.88s)
creating index...
index created!
Running per image evaluation...
Evaluate annotation type *bbox*
DONE (t=83.47s).
Accumulating evaluation results...
DONE (t=12.96s).
 Average Precision  (AP) @[ IoU=0.50:0.95 | area=   all | maxDets=100 ] = 0.504
 Average Precision  (AP) @[ IoU=0.50      | area=   all | maxDets=100 ] = 0.688
 Average Precision  (AP) @[ IoU=0.75      | area=   all | maxDets=100 ] = 0.546
 Average Precision  (AP) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = 0.351
 Average Precision  (AP) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = 0.551
 Average Precision  (AP) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.644
 Average Recall     (AR) @[ IoU=0.50:0.95 | area=   all | maxDets=  1 ] = 0.382
 Average Recall     (AR) @[ IoU=0.50:0.95 | area=   all | maxDets= 10 ] = 0.629
 Average Recall     (AR) @[ IoU=0.50:0.95 | area=   all | maxDets=100 ] = 0.681
 Average Recall     (AR) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = 0.524
 Average Recall     (AR) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = 0.735
 Average Recall     (AR) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.827
Results saved to runs/val/exp

COCO test-dev2017

Download COCO test2017 dataset (7GB - 40,000 images), to test model accuracy on test-dev set (20,000 images, no labels). Results are saved to a *.json file which should be zipped and submitted to the evaluation server at https://competitions.codalab.org/competitions/20794.

In [ ]:

# Download COCO test-dev2017
torch.hub.download_url_to_file('https://github.com/ultralytics/yolov5/releases/download/v1.0/coco2017labels.zip', 'tmp.zip')
!unzip -q tmp.zip -d ../ && rm tmp.zip # unzip labels
!f="test2017.zip" && curl http://images.cocodataset.org/zips/$f -o $f && unzip -q $f && rm $f  # 7GB,  41k images
%mv ./test2017 ../coco/images  # move to /coco

In [ ]:

# Run YOLOv5s on COCO test-dev2017 using --task test
!python val.py --weights yolov5s.pt --data coco.yaml --task test

3. Train

Download COCO128, a small 128-image tutorial dataset, start tensorboard and train YOLOv5s from a pretrained checkpoint for 3 epochs (note actual training is typically much longer, around 300-1000 epochs, depending on your dataset).

In [ ]:

# Download COCO128
torch.hub.download_url_to_file('https://github.com/ultralytics/yolov5/releases/download/v1.0/coco128.zip', 'tmp.zip')
!unzip -q tmp.zip -d ../ && rm tmp.zip

HBox(children=(FloatProgress(value=0.0, max=22091032.0), HTML(value='')))

Train a YOLOv5s model on COCO128 with --data coco128.yaml, starting from pretrained --weights yolov5s.pt, or from randomly initialized --weights '' --cfg yolov5s.yaml. Models are downloaded automatically from the latest YOLOv5 release, and COCO, COCO128, and VOC datasets are downloaded automatically on first use.

All training results are saved to runs/train/ with incrementing run directories, i.e. runs/train/exp2, runs/train/exp3 etc.

In [ ]:

# Tensorboard  (optional)
%load_ext tensorboard
%tensorboard --logdir runs/train

In [ ]:

# Weights & Biases  (optional)
%pip install -q wandb
import wandb
wandb.login()

In [ ]:

# Train YOLOv5s on COCO128 for 3 epochs
!python train.py --img 640 --batch 16 --epochs 3 --data coco128.yaml --weights yolov5s.pt --cache

github: up to date with https://github.com/ultralytics/yolov5 ✅
YOLOv5 🚀 v5.0-158-g78cf488 torch 1.8.1+cu101 CUDA:0 (Tesla V100-SXM2-16GB, 16160.5MB)

Namespace(adam=False, artifact_alias='latest', batch_size=16, bbox_interval=-1, bucket='', cache_images=True, cfg='', data='./data/coco128.yaml', device='', entity=None, epochs=3, evolve=False, exist_ok=False, global_rank=-1, hyp='hyp.scratch.yaml', image_weights=False, img_size=[640, 640], label_smoothing=0.0, linear_lr=False, local_rank=-1, multi_scale=False, name='exp', noautoanchor=False, nosave=False, notest=False, project='runs/train', quad=False, rect=False, resume=False, save_dir='runs/train/exp', save_period=-1, single_cls=False, sync_bn=False, total_batch_size=16, upload_dataset=False, weights='yolov5s.pt', workers=8, world_size=1)
tensorboard: Start with 'tensorboard --logdir runs/train', view at http://localhost:6006/
2021-06-08 17:00:55.016221: I tensorflow/stream_executor/platform/default/dso_loader.cc:53] Successfully opened dynamic library libcudart.so.11.0
hyperparameters: lr0=0.01, lrf=0.2, momentum=0.937, weight_decay=0.0005, warmup_epochs=3.0, warmup_momentum=0.8, warmup_bias_lr=0.1, box=0.05, cls=0.5, cls_pw=1.0, obj=1.0, obj_pw=1.0, iou_t=0.2, anchor_t=4.0, fl_gamma=0.0, hsv_h=0.015, hsv_s=0.7, hsv_v=0.4, degrees=0.0, translate=0.1, scale=0.5, shear=0.0, perspective=0.0, flipud=0.0, fliplr=0.5, mosaic=1.0, mixup=0.0
wandb: Install Weights & Biases for YOLOv5 logging with 'pip install wandb' (recommended)

                 from  n    params  module                                  arguments
  0                -1  1      3520  models.common.Focus                     [3, 32, 3]
  1                -1  1     18560  models.common.Conv                      [32, 64, 3, 2]
  2                -1  1     18816  models.common.C3                        [64, 64, 1]
  3                -1  1     73984  models.common.Conv                      [64, 128, 3, 2]
  4                -1  1    156928  models.common.C3                        [128, 128, 3]
  5                -1  1    295424  models.common.Conv                      [128, 256, 3, 2]
  6                -1  1    625152  models.common.C3                        [256, 256, 3]
  7                -1  1   1180672  models.common.Conv                      [256, 512, 3, 2]
  8                -1  1    656896  models.common.SPP                       [512, 512, [5, 9, 13]]
  9                -1  1   1182720  models.common.C3                        [512, 512, 1, False]
 10                -1  1    131584  models.common.Conv                      [512, 256, 1, 1]
 11                -1  1         0  torch.nn.modules.upsampling.Upsample    [None, 2, 'nearest']
 12           [-1, 6]  1         0  models.common.Concat                    [1]
 13                -1  1    361984  models.common.C3                        [512, 256, 1, False]
 14                -1  1     33024  models.common.Conv                      [256, 128, 1, 1]
 15                -1  1         0  torch.nn.modules.upsampling.Upsample    [None, 2, 'nearest']
 16           [-1, 4]  1         0  models.common.Concat                    [1]
 17                -1  1     90880  models.common.C3                        [256, 128, 1, False]
 18                -1  1    147712  models.common.Conv                      [128, 128, 3, 2]
 19          [-1, 14]  1         0  models.common.Concat                    [1]
 20                -1  1    296448  models.common.C3                        [256, 256, 1, False]
 21                -1  1    590336  models.common.Conv                      [256, 256, 3, 2]
 22          [-1, 10]  1         0  models.common.Concat                    [1]
 23                -1  1   1182720  models.common.C3                        [512, 512, 1, False]
 24      [17, 20, 23]  1    229245  models.yolo.Detect                      [80, [[10, 13, 16, 30, 33, 23], [30, 61, 62, 45, 59, 119], [116, 90, 156, 198, 373, 326]], [128, 256, 512]]
Model Summary: 283 layers, 7276605 parameters, 7276605 gradients, 17.1 GFLOPs

Transferred 362/362 items from yolov5s.pt
Scaled weight_decay = 0.0005
Optimizer groups: 62 .bias, 62 conv.weight, 59 other
train: Scanning '../coco128/labels/train2017.cache' images and labels... 128 found, 0 missing, 2 empty, 0 corrupted: 100% 128/128 [00:00<00:00, 1503840.09it/s]
train: Caching images (0.1GB): 100% 128/128 [00:00<00:00, 198.74it/s]
val: Scanning '../coco128/labels/train2017.cache' images and labels... 128 found, 0 missing, 2 empty, 0 corrupted: 100% 128/128 [00:00<00:00, 475107.00it/s]
val: Caching images (0.1GB): 100% 128/128 [00:01<00:00, 98.63it/s]
Plotting labels...

autoanchor: Analyzing anchors... anchors/target = 4.26, Best Possible Recall (BPR) = 0.9946
Image sizes 640 train, 640 val
Using 2 dataloader workers
Logging results to runs/train/exp
Starting training for 3 epochs...

     Epoch   gpu_mem       box       obj       cls     total    labels  img_size
       0/2     10.8G   0.04226   0.06067   0.02005     0.123       158       640: 100% 8/8 [00:05<00:00,  1.45it/s]
               Class     Images     Labels          P          R     mAP@.5 mAP@.5:.95: 100% 4/4 [00:04<00:00,  1.17s/it]
                 all        128        929      0.633      0.641      0.668      0.438

     Epoch   gpu_mem       box       obj       cls     total    labels  img_size
       1/2     6.66G   0.04571   0.06615   0.01952    0.1314       164       640: 100% 8/8 [00:01<00:00,  5.10it/s]
               Class     Images     Labels          P          R     mAP@.5 mAP@.5:.95: 100% 4/4 [00:01<00:00,  3.88it/s]
                 all        128        929      0.614      0.661       0.67      0.438

     Epoch   gpu_mem       box       obj       cls     total    labels  img_size
       2/2     6.66G   0.04542   0.07179   0.01861    0.1358       191       640: 100% 8/8 [00:01<00:00,  5.40it/s]
               Class     Images     Labels          P          R     mAP@.5 mAP@.5:.95: 100% 4/4 [00:02<00:00,  1.43it/s]
                 all        128        929      0.636      0.652       0.67      0.439
3 epochs completed in 0.007 hours.

Optimizer stripped from runs/train/exp/weights/last.pt, 14.8MB
Optimizer stripped from runs/train/exp/weights/best.pt, 14.8MB

4. Visualize

Weights & Biases Logging 🌟 NEW

Weights & Biases (W&B) is now integrated with YOLOv5 for real-time visualization and cloud logging of training runs. This allows for better run comparison and introspection, as well improved visibility and collaboration for teams. To enable W&B pip install wandb, and then train normally (you will be guided through setup on first use).

During training you will see live updates at https://wandb.ai/home, and you can create and share detailed Reports of your results. For more information see the YOLOv5 Weights & Biases Tutorial.

Local Logging

All results are logged by default to runs/train, with a new experiment directory created for each new training as runs/train/exp2, runs/train/exp3, etc. View train and val jpgs to see mosaics, labels, predictions and augmentation effects. Note a Mosaic Dataloader is used for training (shown below), a new concept developed by Ultralytics and first featured in YOLOv4.

In [ ]:

Image(filename='runs/train/exp/train_batch0.jpg', width=800)  # train batch 0 mosaics and labels
Image(filename='runs/train/exp/test_batch0_labels.jpg', width=800)  # val batch 0 labels
Image(filename='runs/train/exp/test_batch0_pred.jpg', width=800)  # val batch 0 predictions

train_batch0.jpg shows train batch 0 mosaics and labels

test_batch0_labels.jpg shows val batch 0 labels

test_batch0_pred.jpg shows val batch 0 predictions

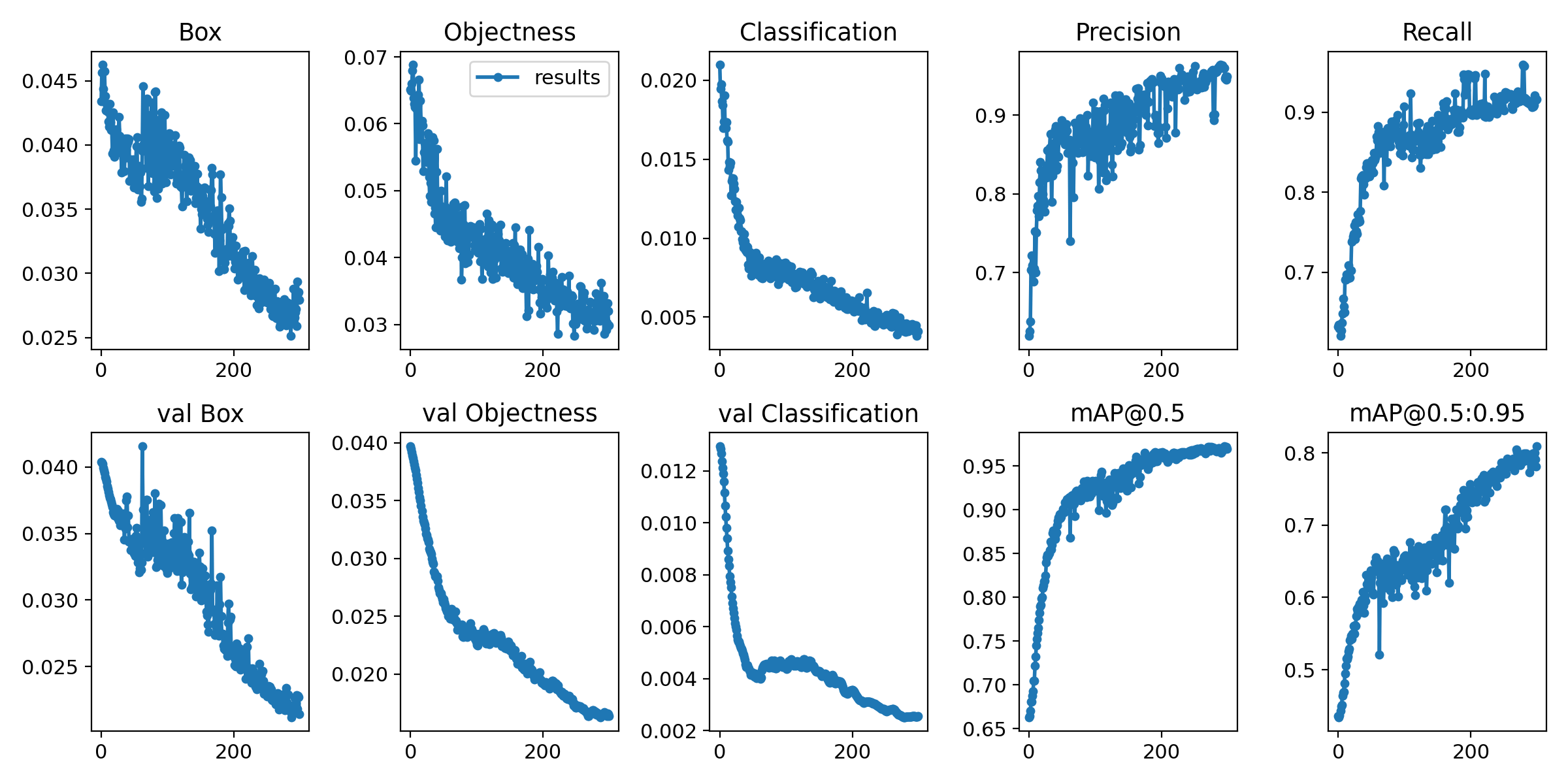

Training results are automatically logged to Tensorboard and runs/train/exp/results.txt, which is plotted as results.png (below) after training completes. You can also plot any results.txt file manually:

In [ ]:

from utils.plots import plot_results
plot_results(save_dir='runs/train/exp')  # plot all results*.txt files in 'runs/train/exp'
Image(filename='runs/train/exp/results.png', width=800)

Environments

YOLOv5 may be run in any of the following up-to-date verified environments (with all dependencies including CUDA/CUDNN, Python and PyTorch preinstalled):

• Google Colab and Kaggle notebooks with free GPU:
• Google Cloud Deep Learning VM. See GCP Quickstart Guide
• Amazon Deep Learning AMI. See AWS Quickstart Guide
• Docker Image. See Docker Quickstart Guide

Status

If this badge is green, all YOLOv5 GitHub Actions Continuous Integration (CI) tests are currently passing. CI tests verify correct operation of YOLOv5 training (train.py), testing (val.py), inference (detect.py) and export (export.py) on MacOS, Windows, and Ubuntu every 24 hours and on every commit.

Appendix

Optional extras below. Unit tests validate repo functionality and should be run on any PRs submitted.

In [ ]:

# Reproduce
for x in 'yolov5s', 'yolov5m', 'yolov5l', 'yolov5x':
  !python val.py --weights {x}.pt --data coco.yaml --img 640 --conf 0.25 --iou 0.45  # speed
  !python val.py --weights {x}.pt --data coco.yaml --img 640 --conf 0.001 --iou 0.65  # mAP

In [ ]:

# PyTorch Hub
import torch

# Model
model = torch.hub.load('ultralytics/yolov5', 'yolov5s')

# Images
dir = 'https://github.com/ultralytics/yolov5/raw/master/data/images/'
imgs = [dir + f for f in ('zidane.jpg', 'bus.jpg')]  # batch of images

# Inference
results = model(imgs)
results.print()  # or .show(), .save()

In [ ]:

# Unit tests
%%shell
export PYTHONPATH="$PWD"  # to run *.py. files in subdirectories

rm -rf runs  # remove runs/
for m in yolov5s; do  # models
  python train.py --weights $m.pt --epochs 3 --img 320 --device 0  # train pretrained
  python train.py --weights '' --cfg $m.yaml --epochs 3 --img 320 --device 0  # train scratch
  for d in 0 cpu; do  # devices
    python detect.py --weights $m.pt --device $d  # detect official
    python detect.py --weights runs/train/exp/weights/best.pt --device $d  # detect custom
    python val.py --weights $m.pt --device $d # val official
    python val.py --weights runs/train/exp/weights/best.pt --device $d # val custom
  done
  python hubconf.py  # hub
  python models/yolo.py --cfg $m.yaml  # inspect
  python export.py --weights $m.pt --img 640 --batch 1  # export
done

In [ ]:

# Profile
from utils.torch_utils import profile

m1 = lambda x: x * torch.sigmoid(x)
m2 = torch.nn.SiLU()
profile(x=torch.randn(16, 3, 640, 640), ops=[m1, m2], n=100)

In [ ]:

# Evolve
!python train.py --img 640 --batch 64 --epochs 100 --data coco128.yaml --weights yolov5s.pt --cache --noautoanchor --evolve
!d=runs/train/evolve && cp evolve.* $d && zip -r evolve.zip $d && gsutil mv evolve.zip gs://bucket  # upload results (optional)

In [ ]:

# VOC
for b, m in zip([64, 48, 32, 16], ['yolov5s', 'yolov5m', 'yolov5l', 'yolov5x']):  # zip(batch_size, model)
  !python train.py --batch {b} --weights {m}.pt --data VOC.yaml --epochs 50 --cache --img 512 --nosave --hyp hyp.finetune.yaml --project VOC --name {m}
